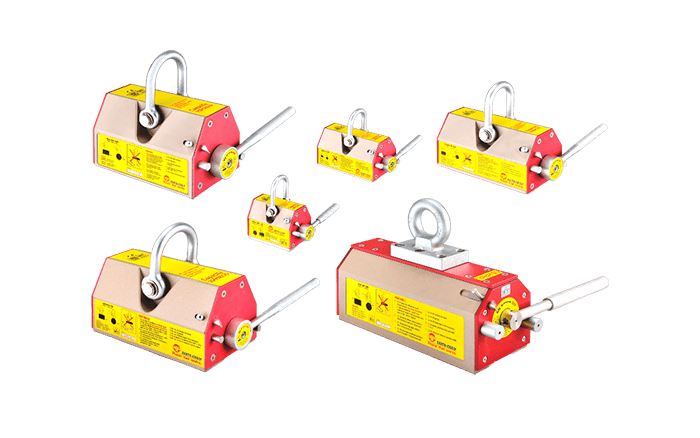

Lifting Magnet-ELM Series
Applications:
Suitable for move plate steel, block steel and round steel, such as machine parts, press molds, plastic molds and iron material .....etc.
Feature:
- Made by "Rare Earth" magnet with technology of improvement.
- All new models with "light weight" "less dimension" and "lower price".
- Made by permanent magnet, require no power supply, thus eliminating hazards due to failure wiring system as electric type.
- It features powerful magnetic force, with 3.5 times safety coefficient makes more safety in use.
Intro Video
Specifications
| MODEL | Capacity | A | B | C | D | E | F | G | H | Weight | SAFETY FACTOR |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kgf | lbf | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | ||
| ELM-100 | 100 | 220 | 107 | 4.2 | 84 | 3.3 | 129 | 5.0 | 123 | 4.8 | 60 | 2.4 | 71 | 2.8 | 46 | 1.8 | 30 | 1.2 | 2.5 | 5.5 | x3.5 times |
| ELM-300 | 300 | 660 | 180 | 7.1 | 155 | 6.1 | 157 | 6.2 | 185 | 7.3 | 90 | 3.5 | 93 | 3.7 | 51 | 2.0 | 41 | 1.6 | 8.6 | 18.9 | |
| ELM-600 | 600 | 1320 | 255 | 10 | 224 | 8.8 | 213 | 8.4 | 263 | 10.4 | 115 | 4.5 | 120 | 4.7 | 77 | 3.0 | 52 | 2.0 | 21 | 46 | |
| ELM-1000 | 1000 | 2200 | 294 | 11.5 | 259 | 10.1 | 286 | 11.3 | 377 | 14.8 | 163 | 6.4 | 169 | 6.7 | 97 | 3.8 | 87 | 3.4 | 46 | 101 | |
| ELM-2000 | 2000 | 4400 | 422 | 16.6 | 360 | 15 | 355 | 14.0 | 515 | 20.3 | 216 | 8.5 | 215 | 8.5 | 105 | 4.1 | 123 | 4.8 | 118 | 260 | |
| ELM-3000 | 3000 | 6600 | 587 | 23.1 | 521 | 20.5 | 423 | 16.7 | 710 | 28 | 216 | 8.5 | 222 | 8.7 | 158 | 6.2 | 80 | 3.2 | 181 | 398 | x3.0 times |
