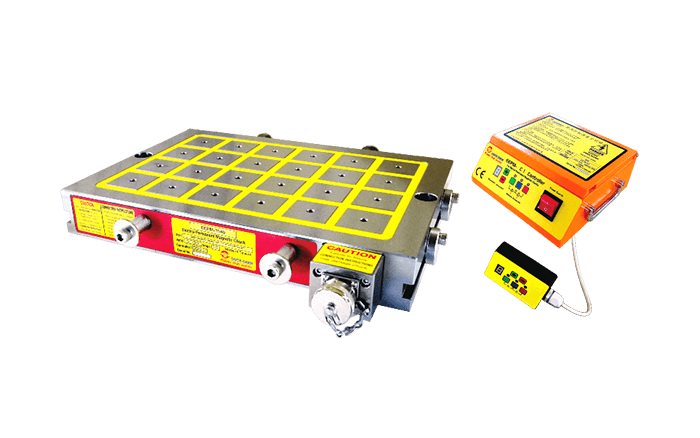

Electro-Permanent Magnetic Chuck-EEPM Series

Pole 50X50 mm, Flux Line 25 mm, Magnetic Force 1250±5% kgf/4 Poles

  • Super power magnetic force 1250kgf/100cm2±5%. (4 Poles)
  • 1~6 seconds control for power ON & OFF. No electric power supply required to keep the magnetic chuck ON. Safety in case of power failure.
  • No power supply to keep the magnetic chuck ON, it could be used for long time and never get temperatures to affect the accuracy of workpieces.
  • Can do 5 sides machining, un-obstructed movement of cutters during machining. One cycle to finish a workpiece, helps in achieving best machining accuracy and increases efficiency a lot.
  • Easy and convenient to clamp a workpiece, shortens clamping time.

Intro Video

Specifications

Unit:mm

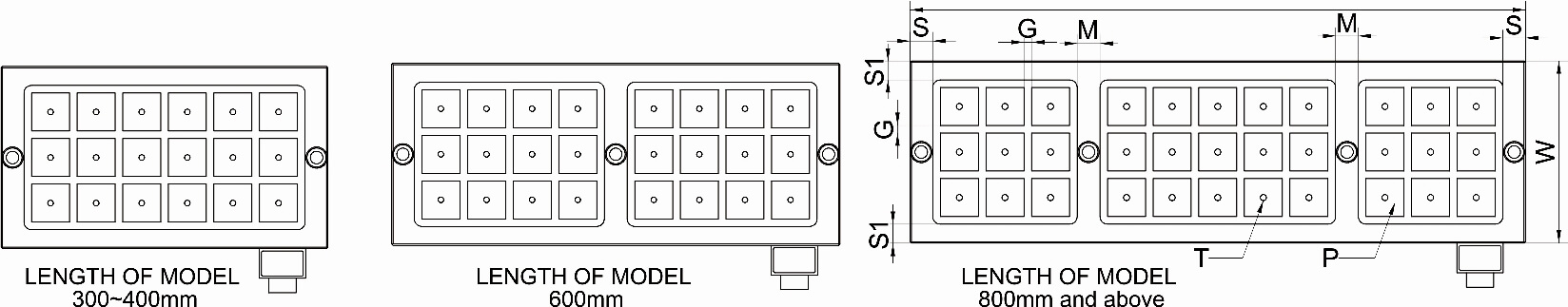

MODEL NO. DIMENTION PITCH
G		 POLE
P		 NO. OF
POLE		 TOTAL HOLDING
POWER kgf ±5%		 CHUCK
N.W.		 VOLTAGE
(Single Phase)		 CURRENT
AMP		 CONTROLLER
(included)		 VOLTAGE
(Single Phase)		 CURRENT
AMP		 CONTROLLER
(included)
W L S S1 M T H
EEPM-2540B 240 430 30 25 -- M8 60 10 50×50 18 5600 50kg CHUCK
DC
220V

CONTROLLER
AC
220V
/
480V		 18A C1 CHUCK
DC
380V

CONTROLLER
AC
380V
/
440V		 16A C1
EEPM-2560B 240 590 30 25 30 24 7500 69kg 30A C1 12A C1
EEPM-2580B 240 810 30 25 30 33 10300 92kg 30A C1 19A C1
EEPM-2590B 240 870 30 25 30 36 11200 98kg 18A C2 18A C1
EEPM-25100B 240 990 30 25 30 42 13100 111kg 26A C2 14A C2
EEPM-3030B 300 310 30 25 -- 16 5000 44kg 20A C1 8A C1
EEPM-3040B 300 430 30 25 -- 24 7500 61kg 30A C1 12A C1
EEPM-3060B 300 590 30 25 30 32 10000 82kg 30A C1 20A C1
EEPM-3080B 300 810 30 25 30 44 13700 116kg 25A C2 13A C2
EEPM-3090B 300 870 30 25 30 48 15000 123kg 30A C2 12A C2
EEPM-30100B 300 990 30 25 30 56 17500 138kg 35A C2 19A C2
Unit:mm
MODEL NO. DIMENTION PITCH
G		 POLE
P		 NO. OF
POLE		 TOTAL HOLDING
POWER kgf ±5%		 CHUCK
N.W.		 VOLTAGE
(Single Phase)		 CURRENT
AMP		 CONTROLLER
(included)		 VOLTAGE
(Single Phase)		 CURRENT
AMP		 CONTROLLER
(included)
W L S S1 M T H
EEPM-4040B 420 430 30 25 -- M8 60 10 50×50 36 11200 84kg CHUCK
DC
220V

CONTROLLER
AC
220V
/
480V		 18A C2 CHUCK
DC
380V

CONTROLLER
AC
380V
/
440V		 18A C1
EEPM-4050B 420 490 30 25 -- 42 13100 95kg 26A C2 14A C2
EEPM-4060B 420 590 30 25 30 48 15000 100kg 30A C2 12A C2
EEPM-4080B 420 810 30 25 30 66 20600 159kg 30A C2 19A C2
EEPM-4090B 420 870 30 25 30 72 22500 169kg 18A C4 18A C2
EEPM-40100B 420 990 30 25 30 84 26200 193kg 26A C4 12A C4
EEPM-5060B 480 590 30 25 30 56 17500 129kg 35A C2 19A C2
EEPM-5080B 480 810 30 25 30 77 24000 185kg 30A C4 13A C4
EEPM-5090B 480 870 30 25 30 84 26200 196kg 26A C4 14A C4
EEPM-50100B 480 990 30 25 30 98 30600 219kg 30A C4 12A C4
Unit:mm
MODEL NO. DIMENTION PITCH
G		 POLE
P		 NO. OF
POLE		 TOTAL HOLDING
POWER kgf ±5%		 CHUCK
N.W.		 VOLTAGE
(Single Phase)		 CURRENT
AMP		 CONTROLLER
(included)		 VOLTAGE
(Single Phase)		 CURRENT
AMP		 CONTROLLER
(included)
W L S S1 M T H
EEPM-6060B 600 590 30 25 30 M8 60 10 50×50 72 22500 165kg CHUCK
DC
220V

CONTROLLER
AC
220V
/
480V		 18A C4 CHUCK
DC
380V

CONTROLLER
AC
380V
/
440V		 18A C2
EEPM-6080B 600 810 30 25 30 99 30900 215kg 30A C4 19A C4
EEPM-6090B 600 870 30 25 30 108 33700 240kg 27A C4 20A C4
EEPM-60100B 600 990 30 25 30 126 39300 274kg 32A C4 21A C4
EEPM-8080B 755 810 30 25 30 121 37800 271kg 33A C4 18A C4
