Product Diagram

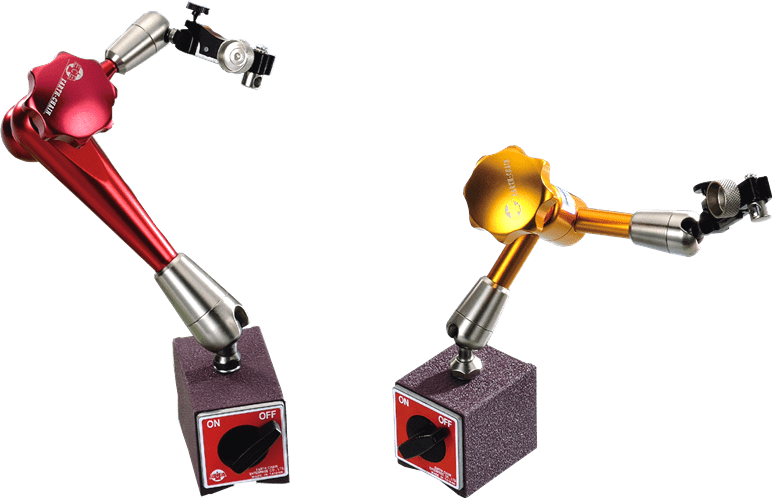

Universal Arm Magnetic Stand-ECE Series

Feature:

  • Made by aluminum alloy, light and easy to operate.
  • Principle of hydraulic, stable and accurate.
  • With new type micro-adjustment device, it's more precise and stable.

Specifications

Model Holding Power Arm Length Base Dimension Net Weight
L W H
ECE-330AL 100 kgf 426 mm 80 mm 50 mm 55 mm 2.2 kg
ECE-330A 100 kgf 345 mm 80 mm 50 mm 55 mm 2.0 kg
ECE-330B 80 kgf 345 mm 60 mm 50 mm 55 mm 1.7 kg
ECE-330BS 80 kgf 278 mm 60 mm 50 mm 55 mm 1.5 kg
ECE-300AL 100 kgf 434 mm 80 mm 50 mm 55 mm 1.9 kg
ECE-300A 100 kgf 336 mm 80 mm 50 mm 55 mm 1.9 kg
ECE-300B 80 kgf 336 mm 60 mm 50 mm 55 mm 1.6 kg
ECE-300BS 80 kgf 257 mm 60 mm 50 mm 55 mm 1.4 kg
