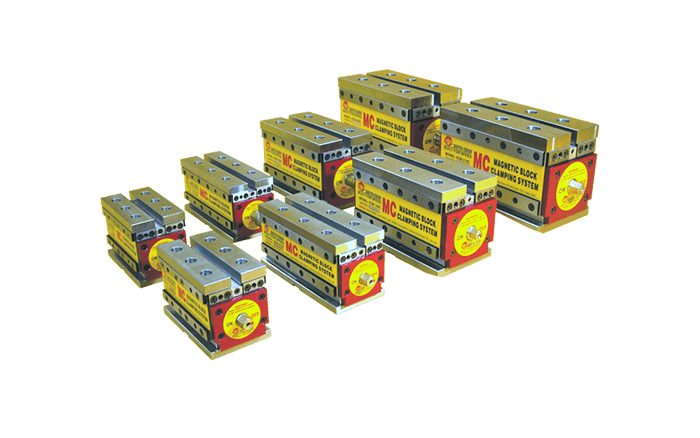

Permanent Magnetic Clamping Block-ECB Series
- The all new model Magnetic Clamping Block ECB Series are a new sense of clamping way for metal working on CNC Machining Center and Milling Machine in quick clamp workpieces.
- Free to set up position, numbers and distance of Magnetic Clamping Block according to the size of workpiece.
- The ECB Series including changeable Induction Soft Block. It can be revised the surface to be 100% accuracy on the machine for clamp workpieces. Can be also cutting, drilling, tapping and slotting directly to the Induction Soft Block during machining workpiece. Multi-function of Induction Soft Block, the user can make it by themselves according to workpiece required.
- Two machining circle for finish workpiece machining, increase a lot of machining efficiency and achieve accuracy required.
Intro Video
Specifications
| MODEL NO | HOLDING POWER | MINIMUM THICKNESS OF WORKPIECE REQUIRED |
G | G= +0 - 0.03 | H | H= +0 - 0.03 | N.W. |
|---|---|---|---|---|---|---|---|
| ECB-210 | 2100kgf±5% | 30 | 115 | Accuracy control required |
134 | Accuracy control required |
36kg |
| ECB-120 | 1200kgf±5% | 20 | 92.5 | 108 | 18kg | ||
| ECB-075 | 750kgf±5% | 15 | 85 | 78 | 9.5kg | ||
| ECB-050 | 500kgf±5% | 15 | 61 | 78 | 7kg |
